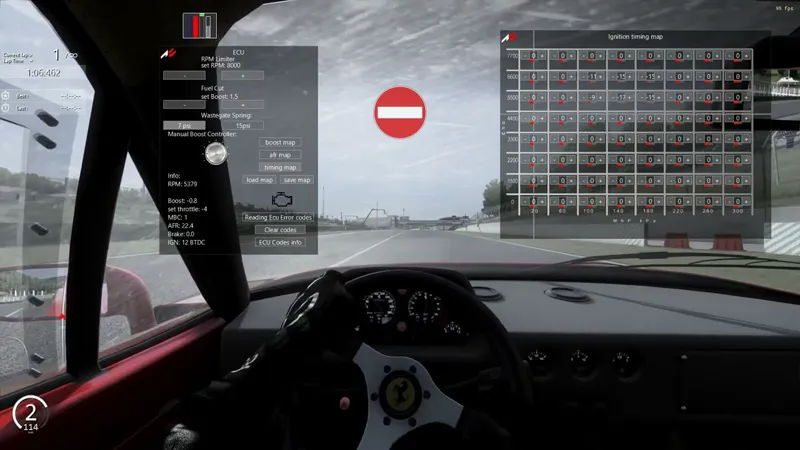

Assetto Corsa - new Ecu app #9 New Ignition map testing
Already done:
-realtime RPM limiter
-realtime Boost limiter (up to 2bar, base boost is 1,2bar)
-realistic wastegate 7psi/15psi springs with different boost build times based on RPM, TPS, Gears
-Manual boost controller (0,5bar can be adjusted up to 0,9bar, 1bar spring can be adjusted up to 1,6bar )
-AFR info, MAP info -ECU light(rev limiter, boost cut)
-PWM boost solenoid table (can be adjusted up to 2Bar)
-Injectors opening time correction table (0 is no correction, 50 is +50% injectors opening time, -50 is -50% opening time)
-Under 10AFR/over 17AFR engine will missfire progressively, 12.5-13AFR is full power(+10% over standard F40 on base boost)
-Knock sensors simulation (Fuel cut is activated in boost when AFR and Boost reach specific value, for example over 12.5AFR + 1bar boost = KNOCK )
-Ecu error codes (blinking, reading, clearing) and ecu codes list
-Ignition timing base map simulation
-Ignition timing affect also boost build time and AFR
Retard timing - faster spool up and richer AFR
Advance timing - slower spool up and leaner AFR
-knock sensors simulation for ignition timing
-Base maps(afr and timing) are for stock boost only ∼1,15bar/17psi . If You want bigger boost, You need to tune it!
-Ignition correction map (max 20deg advance or 20deg retard timing, every 1deg advance gain 2% of power, every 1deg retard loss 2% of power
Working on :
-Data logger
-small fixes
