MW20 blaster rifle configuration done and ready for printing
Ok guys, here it is — finally, it’s all done!
Before I jump into it, just a quick note: I haven’t had the chance to test print everything just yet, but I’m starting now. So if anything ends up needing changes, I’ll know soon and update it ASAP — although I think we might be good! 🤞
To recap:
The original Bryar pistol is included — nothing has changed there, so if you’ve already printed it, you’re all set!

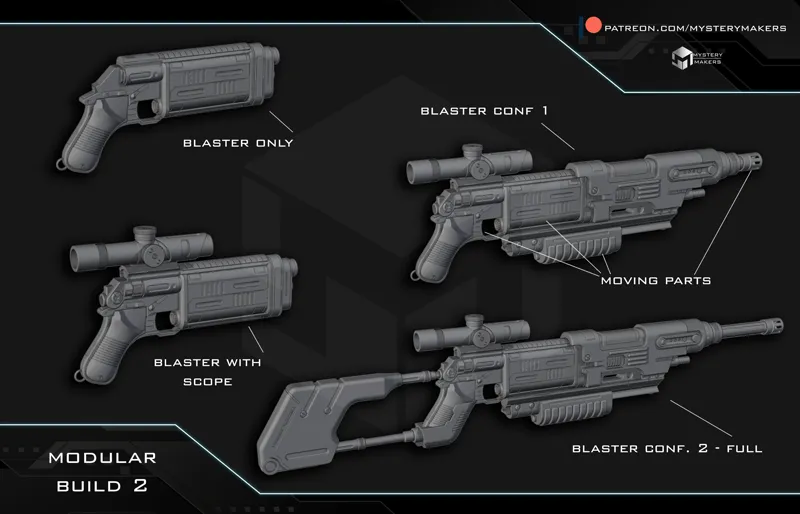

It’s a modular build, so you can switch between several setups:
Blaster
Blaster with scope
Sniper-style blaster
Full blaster rifle option
Included is a PDF build guide with part names and how to link them. I’ll also be making a video for everything once the prints are done.
Grip part 2 can be slid forward and backward
Front barrel can be extended or retracted
Parts can be added/removed — just like in the show!
I’ve also added the .3MF file to help with printing and supports
5x5 pins are used for assembly

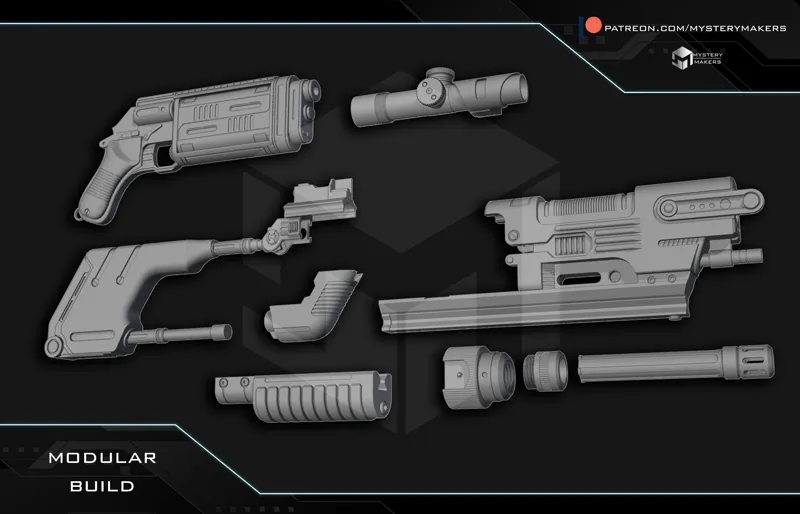

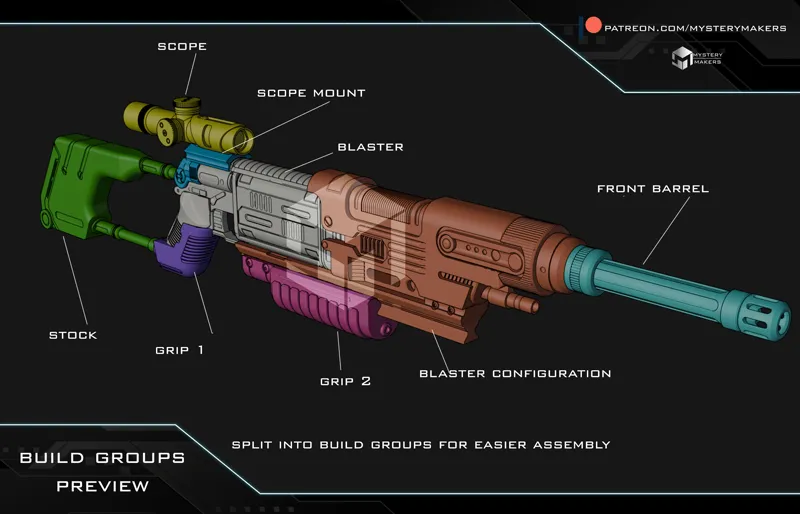

check build guide to see how the parts are split for printing
Ok, I think that’s it! :)
Huge thanks to all of you for your patience and awesome support — this project was crazy, but I’m super excited to finally get the prints going!!!!
Comments (38)
Could we get the specs for adding the servo and electronics to the base Blaster? I see the stl files for that, but not seeing any code, or servo's to use for that.
Since im doing all of it alone it takes a while for me to jump from ine thing to another. But yesi will get to that - the reason why it was nit included from the startvwas a patreon member offered to write a code and list specs if i make the models that would fit them, i did my part but he ghosted me. Since then 2 more offered to do the same, but still - we have nothhing yet :) so i will have to do it myself but since i allreqdy work 16+ hours each day to keep it all running i need some more time to reseqrch it and make it happen and first to finish open projects so i can get to it :D but yes, it will be added :)
Got it all printed and put together. Everything fits nicely. Id post pics but seems like no community tab to be able to.
I’m about to be the envy of my Mando clan. Getting this all printed up as I type :-).
All printed and it's totally amazing quality. Great fit on all parts. Now to get it painted.
I would love it if you could make a stand for it.
Has anyone worked out the functionality of the base pistol? Would love to make it rotate like the show after the trigger press. I see in the files that a servo is mentioned, but don't see anything like wiring or code for the mentioned arduino. In the process of printing now!
trying to figure that one out as well. looked over the files from the original pistol and the updated and cant find any information about what parts are needed.
it's available for download?
yes avilable to "we are makers" tier members : https://www.patreon.com/posts/may-2025-work-in-117444806
FYI, started printing the scope first and getting an error with lens cover part. Object has empty initial layer and cant be printed. Weirdly happening on orca but not bambu studio.
flip that part, my mistake, it has to be rotated the other way arround :D
Great Job Thanks :)
my pleasure :)
This is BAD ASS
thank you so much :D
Thank you so much for this. It looks amazing. Can't wait to start on it.
and i cant wait to see some prints :)
Thanks, Marko. Super cool multi-build!
thakn you :D it was quite a tough one :)
This is amazing! I love bigger builds with options
cant wait to see these being printed :)
Very much looking forward to printing this. any plans to add magnets to help with holding the modular parts in place?
ther are locks and screws, magnets are too weak in such options - plus if we want to add magnets, i would need to "drill holes" in the original blaster, and many people alrleady printed it so that one must not be changed
You’ve outdone yourself brother!!! Very excited to print this one
thank you so much :)
Where you able to make the Berral move?
ofcourse :)
And this ... This is a Kool build .... This is the reason I joined this patreon for interesting and unique projects just like this .... I haven't seen anyone do a multi piece build of this yet ... I'm soo pumped!!
thank you so much :) very kind of you :)
Definitely going to use this for my mandalorian kit keep making the awesome work
yessss :) thank you :)
Thank you so much for this! As soon as I saw it in Andor, I knew you'd love making it. Print beds are warming up now!!
happy to hear :D hope it will all work well, i am test printing it also, but we'll see :D
I know its modular but does that mean you can change it from the pistol to the rifle and back whenever you want?
yes!
Amazing! Thank you!! Can't wait to start it
thank you :)
