Early Release! Rattlesnake!
***THIS FILE IS NO LONGER INCLUDED FREE WITH SUBSCRIPTION.
Use the 50% OFF discount code if you want to purchase it.
Happy Holidays Everyone!

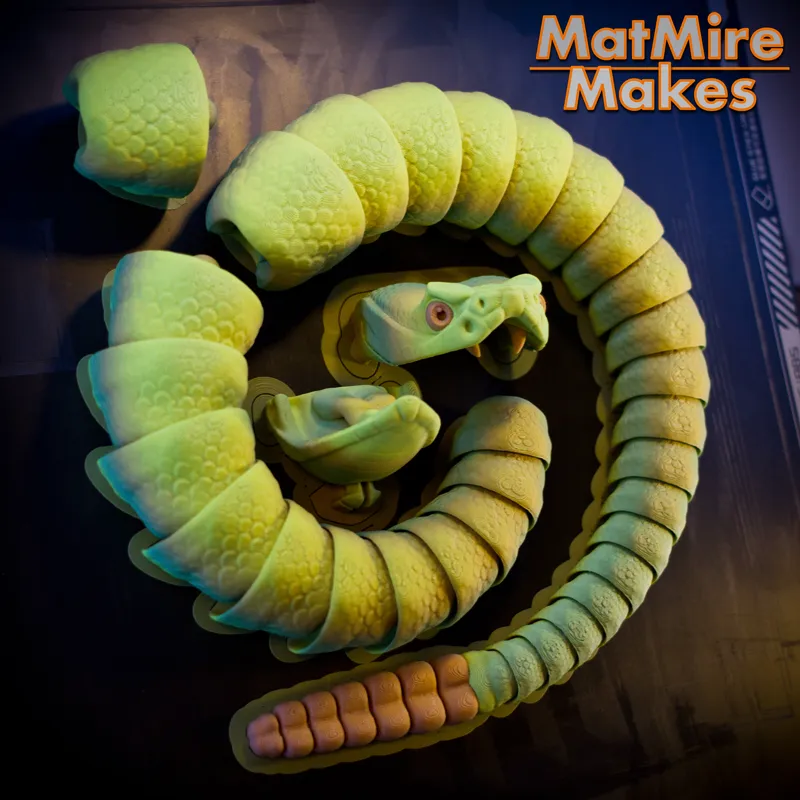

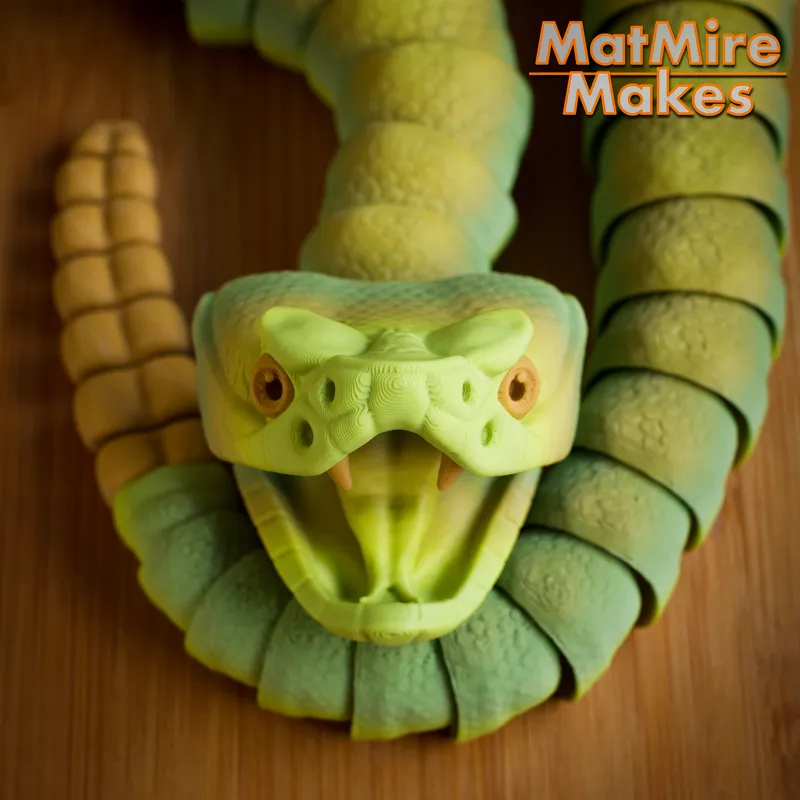

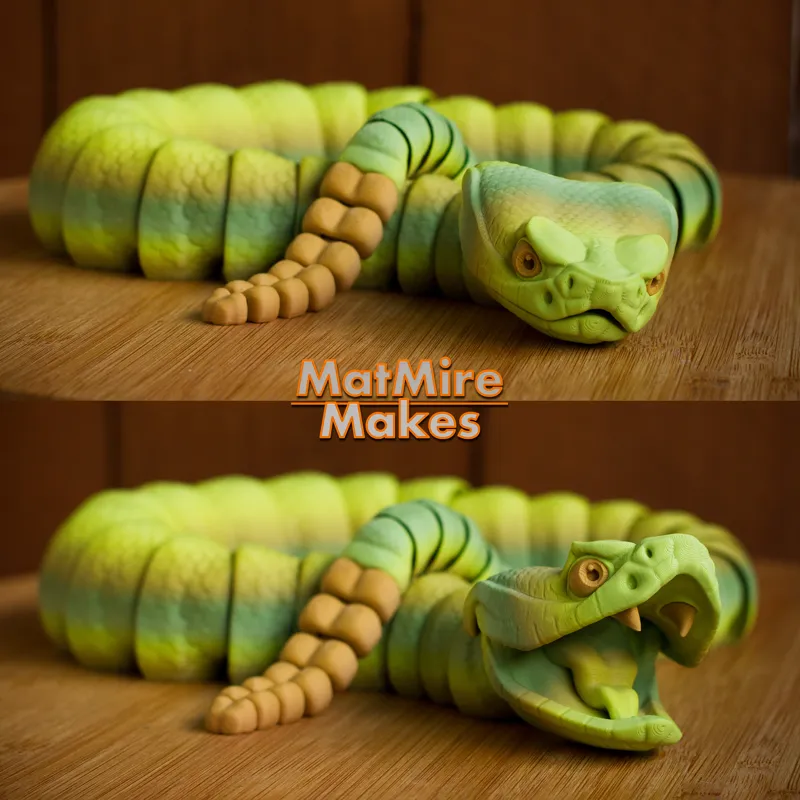

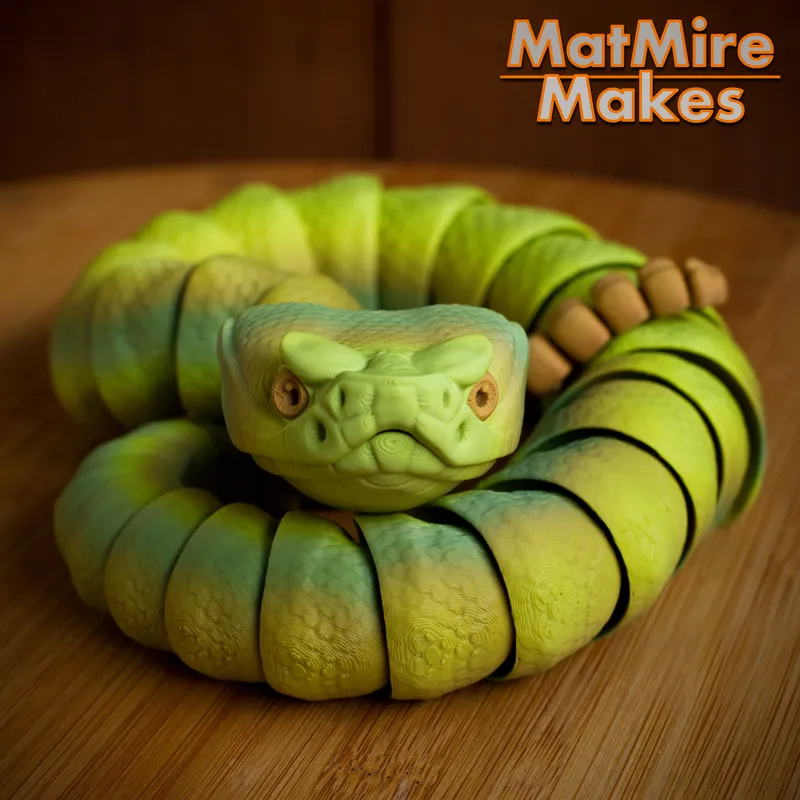

Introducing a little something for all you viper lovers out there, a Rattlesnake! This model has a few new design features that I'm really excited about. In addition to the extension Links you all know from the Ball Python, the Rattlesnake also features a hinged jaw, and a working rattle! Small print-in-place beads fall free inside the rattle, and provide a very satisfying sensory fidget.
It's pretty simple, but here's a little assembly video: https://youtu.be/5F43Vr5wi4A
I hope you enjoy!!
Matt
Pictured Model was printed in these filaments...
Body is Ziro Matcha***
Eyes, Teeth and Rattle is Ziro Wood Grain***
*Click Here to go to the Pinned "the Hub - Info and Current Download Links" post*
3D PRINTING SETTINGS
Body (Front and Rear): Print-In-Place. (I have not yet created a Built-in Brim version of the body, so you may need to generate one if you're having adhesion problems. Use a brim gap of around 0.25mm to aid in brim removal.)
Head Top: Snap-Fit to Head Bottom. Pre-Supported!
Head Bottom: Snap-Fit to the Body Front. Pre-Supported!

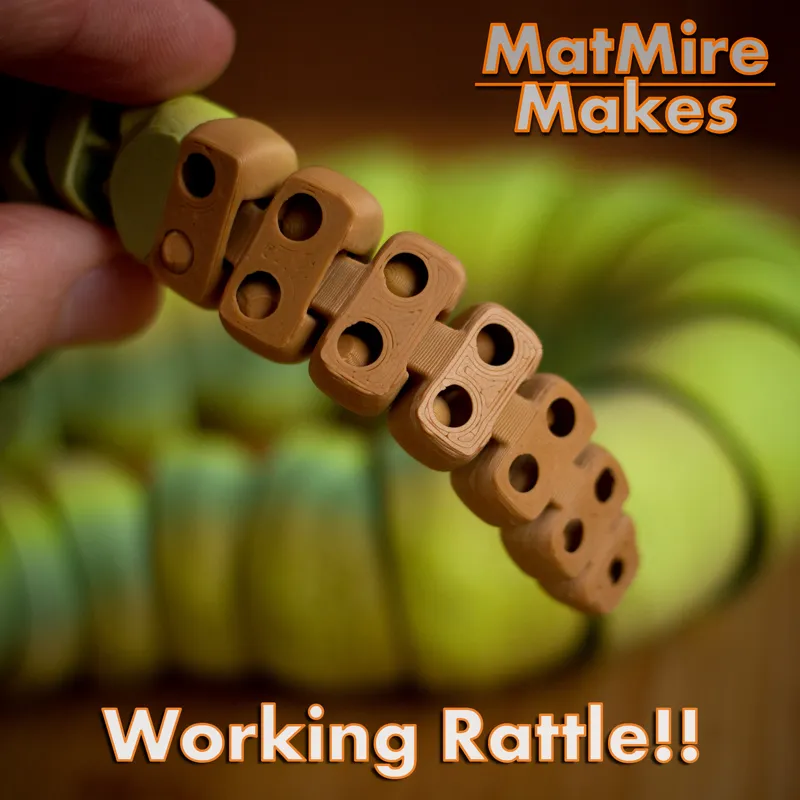

Rattle: Separate so it can be printed in a different color. Snap-Fit to Body Rear. If the rattle beads do not print free from the surrounding material, you can use a pointed object, like a pen, to push them into the rattle. Print-in-place.
Body Extend Link: Print-in-place.
Body (Front and Rear) Aligned: Body links are all in a straight line. Gives more options for people with belt or large build volume printers.
Body Rear wRattle & Body Rear wRattle Aligned: Rattle is pre-attached to the body, if you aren't interested in printing it separately.
10% Infill.
3 Walls.
This has been test printed as low as 70% with full articulation and working rattle!
Here is a quick video showing the easiest method for snap-fitting the head onto the body: https://youtu.be/DWsYu2BY7ow
*Click Here to go to the Pinned "the Hub - Info and Current Download Links" post*
