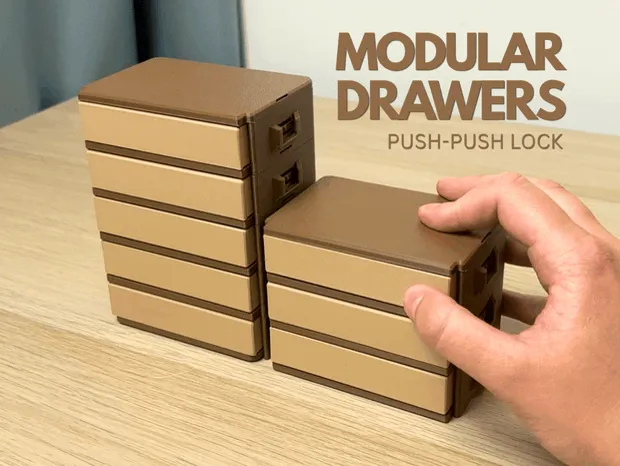

Modular Drawer System | Push-Push Lock
Modular Drawer System features a satisfying push-push mechanism that allows the drawer to be opened and closed with a simple press. Combined with a fully modular design, you can stack and connect modules to create the perfect storage solution for screws, nuts, electronic components, magnets, springs, and other small parts. 🚀
Push-Push locking mechanism 🔒
Fully modular system
Modules can be stacked vertically or connected from the side
Snap-fit connection system keeps all modules securely connected
Perfect for storing screws, nuts, bolts, magnets, springs, and other small parts 🛠
Internal drawer size: 87 × 46 × 15 mm 📏
Support-free printing
Separate drawer front for the best possible visible surface quality
Screw-mounted pin for quick and easy replacement if damaged 🔩
No glue required – all parts are fully printable and designed to snap and fit together

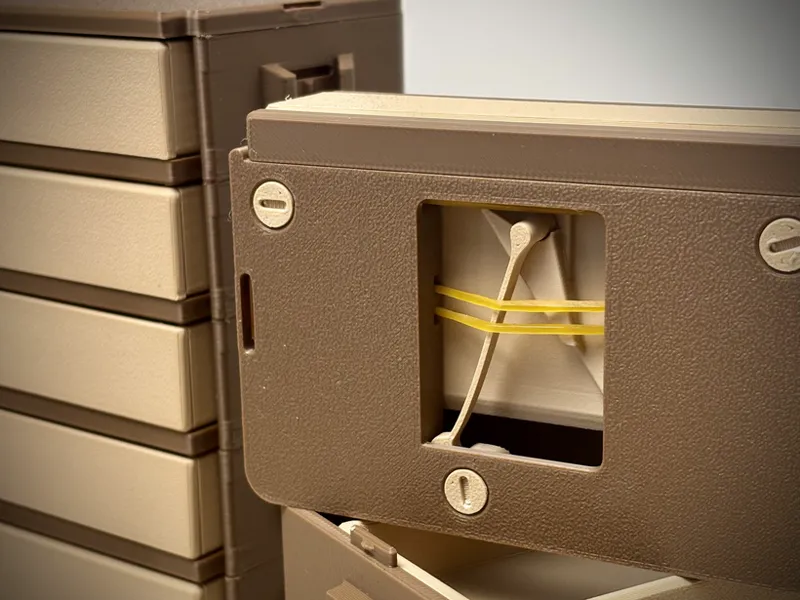

The mechanism requires only two rubber bands ⚠:
1× 1.4 × 16 mm rubber band (pin preload)
1× 1.4 × 40 mm rubber band (drawer opening and closing mechanism)
Printing Notes
⚠ The box must always be printed vertically, exactly as shown in the print profile and preview images.
⚠ The pin seam position is very important. Never place the seam on the flexible section of the pin, as this may significantly reduce its durability and functionality.
⚠ The drawer body and front panel are printed separately to achieve the highest possible front surface quality.
Included in this post:
STL files
STEP file for CAD editing/customization
Pre-sliced .3mf print profile optimized for Bambu Lab printers
