Tilt Box Organizer | Gridfinity 4x3 | Slide Lock 🔒

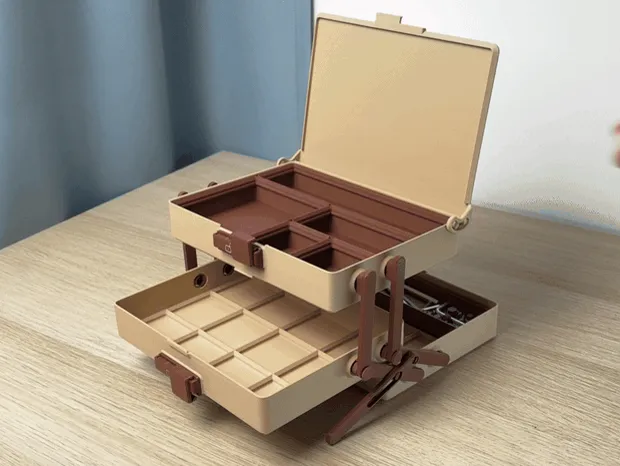

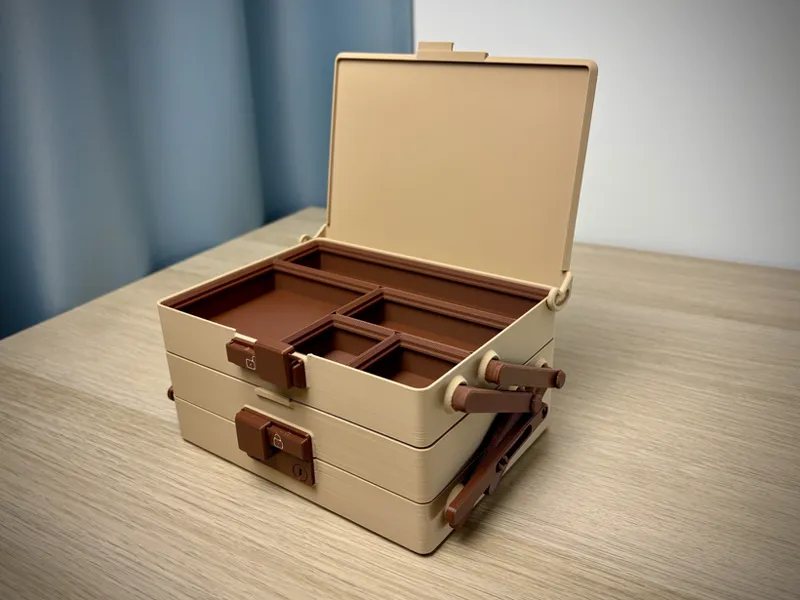

Tilt Box Organizer is a compact 3-tier storage solution designed to keep your tools and small parts perfectly organized. Thanks to its Gridfinity compatibility, you can customize the interior exactly to your needs.
Sliding locks for secure transport and easy handling 🔒
Compact size: 171 × 129 × 88 mm
Gridfinity compatible (4×3) for fully customizable interior
Simple assembly – snap-fit parts + printed screws
3-tier design for maximum organization in a small footprint
Stable construction with support mechanism to prevent tipping - Tilt Leg
Print & Assembly Notes:
Supports are required for 05_Lever + 06_Lever ⚠️
05_Lever and 06_Lever are different (middle pin position!) – follow the assembly diagram
STL file names include quantity (e.g. 08_Lock-Guide_3pcs = print 3x)
Lock parts must be screwed together (10 printed screws)
10_Lock-Slider simply snaps onto 08_Lock-Guide
Gridfinity Generator - Use Gridfinity boxes with height 3 (recommended via configurator)
Included in this post:
STL files
STEP file for CAD editing/customization
Pre-sliced .3mf print profile optimized for Bambu Lab printers
Please do not share the STL or any other files from this model—let’s keep it exclusive for members.
